Memoirs from the old web: IE's crazy content rating system

Today, Internet Explorer has been consigned to the dustbin of history, yet its quirks and peculiar features remain an interesting area of discussion from a historical perspective. There was one particular feature of IE which not only now seems comically naive, but also completely impractical: namely, IE tried to pioneer a system of content rating.

This was essentially a standardised “parental controls” system. The idea was that a webpage could be rated in terms of the profanity, nudity, sex, violence, etc. that it contained.

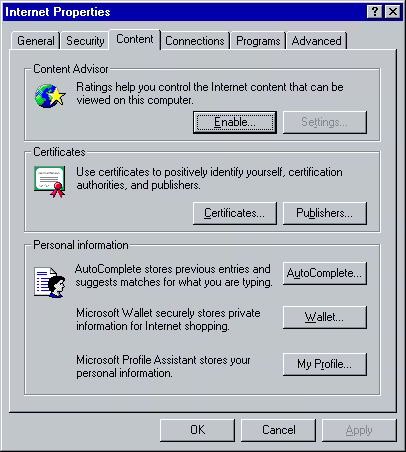

Alright, hands up: how many people remember this dialog in IE's Internet Options?

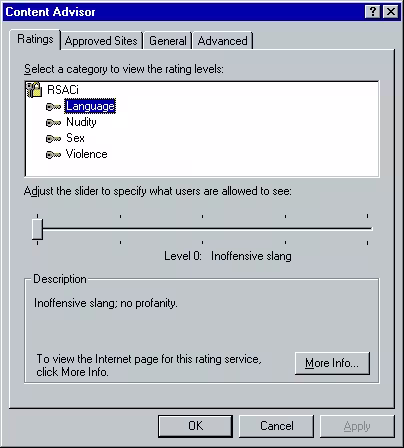

RSACi stands for “Recreational Software Advisory Council — Internet”, the RSAC being an organisation which existed to come up with a system of classification of various kinds of content. The RSACi v1 vocabulary, which is shown in the above dialog, allowed a web page to add a special <meta/> element to indicate how its content should be classified on four different axes:

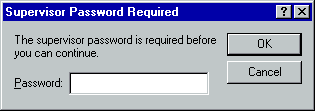

IE's support for this scheme allowed you to configure a maximum level for each of these RSACi criteria, and then secure these settings against being changed by setting a special supervisor password.

The idea, in other words, is that websites would conscientiously add this metadata to each page so that IE could determine whether the user should be allowed to access it; IE allowed you to configure a maximum level for each of these RSACi criteria,and then secure these settings against being changed by setting a special supervisor password. Of course where this idea falls down is that basically no websites actually did this. You could choose to enable the “Users can see sites that have no rating” option, making the mechanism largely ineffective because so few sites actually included the rating metadata, or disable it (the default), making almost all of the web inaccessible; although you could also explicitly whitelist or blacklist specific websites:

Standards. Interestingly, this scheme wasn't some IE proprietary extension. It was actually the product of a W3C standards effort, Platform for Internet Content Selection (PICS). This was an abortive effort at a web standard for adding content ratings metadata to web pages. Other browsers could have implemented it, though I am unsure if any actually did.

However, the rabbit hole actually goes even deeper than I previously knew. You see, the PICS standard doesn't just define support for one particular ratings scheme (RSACi). Oh, no. Instead, the PICS standard defines an entire DSL for defining custom ratings schemes. Not only can arbitrarily many ratings vocabularies exist, but a web page can add metadata classifying itself according to as many of them as it wishes. In fact, a website could even invent its own content ratings scheme in the PICS language and then classify itself using that scheme.

...Did I mention this DSL uses S-expressions?¹

((PICS-version 1.0)
 (rating-system "http://www.rsac.org/Ratings/Description/")
 (rating-service "http://www.rsac.org/ratingsv01.html")
 (name "RSACi")
 (description "The Recreational Software Advisory Council rating service
      for the Internet. Based on the work of Dr. Donald F. Roberts of
      Stanford University, who has studied the effects of media
      for nearly 20 years.")

 (category
  (transmit-as "v")
  (name "Violence")
  (label
   (name "Level 0:   No violence")
   (description "No aggressive violence; no natural or accidental violence.")
   (value 0))
  ...more labels in the category follow...)
 ...more categories follow...)

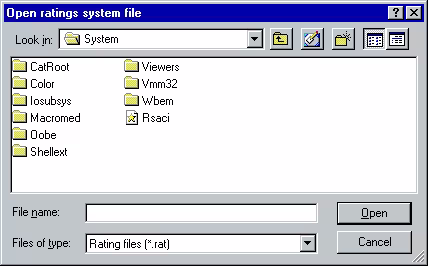

IE didn't cop out implementing the whole shebang, either. You can add your own custom PICS ratings system definitions — Windows just included the .rat file for RSACi by default:

Metadata format. OK, so we have some ratings scheme we want to use, so how do we add the appropriate metadata to a web page? The metadata looks something like this (newlines added for ease of reading):

<meta http-equiv="PICS-Label"
      content='(pics-1.1 "http://www.rsaci.org/ratingsv01.html"
                l gen true
                for "http://www.example.com"
                  r (v 0 s 0 n 0 l 0))'/>

As the syntax implies, you could also use a PICS-Label HTTP header directly. The above metadata would assert a lack of any violence, sex, nudity or bad language on the page under the RSACi v1 scheme; the v, s, n and l characters match up with the transmit-as directive in the PICS DSL example given above. The ratings scheme is identified by the scheme URI. This syntax isn't restricted to a single ratings scheme and a single PICS-Label HTTP header can express a rating in arbitrarily many schemes, each identified by a URI. The http://www.example.com string designates the prefix for which the rating is valid; this might be an entire website or a single web page.

Internet Explorer 7. Weirdly enough, despite its poor uptake, Microsoft held out with its PICS implementation. In IE7, they started to install the newer ICRAv3 rating scheme by default (RAT file). The RSACi RAT file was still bundled and available in Windows's system directory, but you had to explicitly add it. A RAT file for a Taiwanese content rating scheme known as TICRF (ticrf.rat) was also bundled, which also needed to be explicitly added. The TICRF file contains Chinese characters; interestingly, when I tried it, Windows XP's UI displayed the settings for this ratings file as mojibake, an example of Microsoft failing to use their own “W” Unicode APIs.²

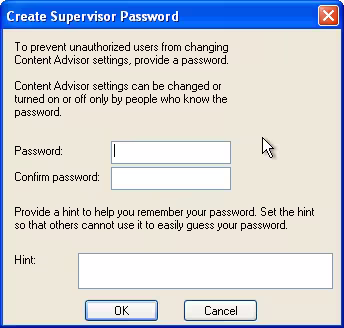

IE7 also introduces a password hint for the supervisor password.

UI when a page is blocked. When accessing a web page which Content Advisor wouldn't allow, IE would pop up the following dialog:

HTTP headers. Besides the PICS-Label HTTP header, PICS also defined an HTTP header to explicitly request that a PICS label header be provided in the response:

GET /foo HTTP/1.1
Protocol-Request: {PICS-1.1 {params full
                    {services "http://www.rsac.org/ratingsv01.html"}}}

HTTP/1.1 200 OK
Content-Type: text/html
Protocol: {PICS-1.1 {headers PICS-Label}}
PICS-Label:
 (PICS-1.1 "http://www.rsac.org/ratingsv01.html" labels
  for "http://www.example.com/foo"
  ratings (v 0 s 0 n 0 l 0))

...

(Note that HTTP/1.x supports breaking header lines over a new line; each continuation line has to begin with a space.)

The full keyword in the Protocol-Request header indicates how verbose the PICS-Label response header should be; the options are minimal, short, full or signed. A list of ratings schemes the client is interested in is sent, and the server responds with a Protocol and PICS-Label header in an otherwise normal HTTP response.

By the way, despite their general naming, the Protocol and Protocol-Request headers are, as far as I can tell, entirely PICS-specific and have never been used for any other purpose; see RFC4229, which lists known HTTP header names at the time it was published, and explicitly lists Protocol and Protocol-Request as relating solely to PICS.

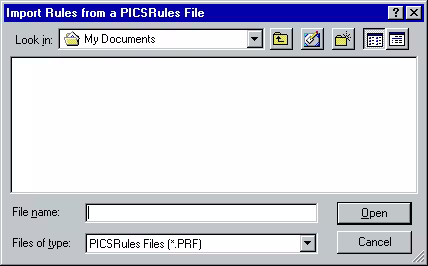

PICS rules files. PICS didn't only define a format for defining ratings schemes and a format for applying metadata to web pages. It also defined a “PICSRules” file format, which can contain a set of rules dictating whether a webpage can be viewed. These rules could whitelist or blacklist sites based on URL patterns, or based on logic and inequality expressions over numerical content rating values. Somewhat amazingly, Content Advisor even includes support for these files:

A complex example of a PICSRules file:

(PicsRule-1.1
    (
        name    (rulename "Example 4"
                 description "Example 4 from PICSRules spec; simply shows
                              how PICSRules rules are formed. This rule is
                              not actually intended for use by real users.")
        source (sourceURL
                   "http://www1.raleigh.ibm.com/pics/PICSRulz/Example1.html")
        ServiceInfo (name "http://www.coolness.org/ratings/V1.html"
                     shortname "Cool"
                     bureauURL "http://labelbureau.coolness.org/Ratings")
        ServiceInfo ("http://www.kid-protectors.org/ratingsv01.html"
                     shortname "KP")
        Policy (RejectByURL ("http://*@www.badnews.com:*/*"
                             "http://*@www.worsenews.com:*/*"
                             "*://*@18.0.0.0!8:*/*"))
        Policy (AcceptByURL "http://*rated-g.org/movies*")
        Policy (AcceptIf "(KP.educational = 1)"
                 Explanation "Always allow educational content.")
        Policy (RejectIf "((KP.violence >= 3) and (KP.educational = 0))"
                 Explanation "Blood's a %22scary%22 thing.")
        Policy (RejectUnless "(Cool.Graphics < 4)" )
        Policy (AcceptIf "otherwise")
    )
)

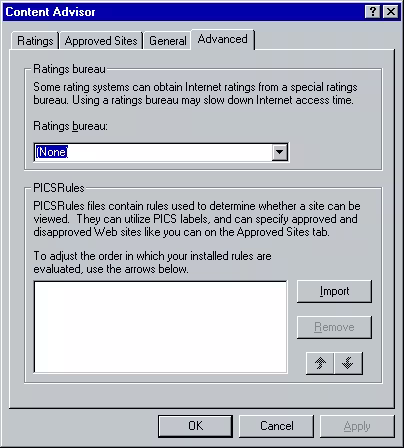

Ratings bureaus. Observant readers will notice the “ratings bureau” option found on the Advanced tab. By default, “None” is the only available option to select. The idea is that since a lot of content on the web wouldn't be rated, content ratings agencies could run a web API which allowed PICS labels to be distributed by the ratings agency rather than by the website itself. This formed an alternative distribution channel for a set of PICS labels. The API is documented in the PICS specification, but can be summarised as:

GET http://some-ratings-scheme.example.org/Ratings?opt=generic
            &u="http%3A%2F%2Fwww.example.com%2Ffoobar"
            &s="http%3A%2F%2Fwww.example.org%2Fv2.5" HTTP/1.1

HTTP/1.0 200 OK
Content-Type: application/pics-labels

...

Here, the s query string argument specifies the rating scheme, and the u argument specifies the web page being inquired about. The content returned is a set of PICS labels expressed in the same S-expression syntax as used by the PICS-Labels HTTP header. There are also different query types which allow an entire tree of ratings for a website to be obtained.

Signatures. PICS even defined a scheme for digitally signing PICS labels(!). Being a specification from 1998, the scheme is based on RSA and MD5.

Creating your own ratings scheme

So... PICS, and IE's “Content Advisor” scheme, allows you to define custom ratings schemes. There's really only one thing for it, isn't there? Clearly, I have to come up with my own content rating scheme.

Here goes. Presenting the Devever Content Rating Scheme:

You can find the .RAT file for this scheme here. After downloading the file, you can install it using the dialog in Content Advisor's settings:

You can also install it by just double clicking the .RAT file in Windows Explorer. This file type even has its own bespoke icon:

Once installed, our rating scheme appears in Content Advisor's settings:

After installing the scheme, I've elected to limit Cats to Level 1, Connector Mating to Level 4, Disturbing Technology to Level 2, Esotericism to Level 3 and Rantiness to Level 0. I left all the ICRA3 settings at Level 0.

I produced a set of PICS test pages which you can access here. Note that since this website requires TLS 1.2 or later, you can't access it using old versions of IE. Therefore, these test pages are also available as a zipped download which you can use locally.

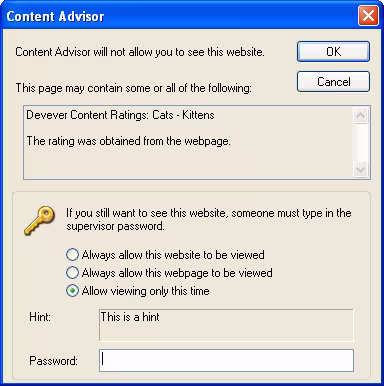

Sure enough, it works:

In terms of how multiple ratings systems interact, it seems like Content Advisor doesn't consider a page “unrated” so long as at least one of the ratings systems you have installed is used to label the page, even if you also have other systems installed that the page doesn't use to label itself.

Creating your own PICS rules file. As mentioned above, Content Advisor also supports PICS rules file. Here I import the following PRF file:

(PicsRule-1.1
  name (rulename "Test Rules")
  (ServiceInfo (
    "https://www.devever.net/ns/pics"
    shortname "Devever"
    bureauURL "http://www.devever.net/bureau"
    UseEmbedded "N")

   Policy (RejectIf "(Devever.c = 3)")
   Policy (AcceptIf "(Devever.c = 4)")
   Policy (RejectByURL ("http://*@*:*/*/pics-test/rsaci-min"))
   Policy (AcceptByURL ("http://*@*:*/*bar"))
   Policy (RejectIf "otherwise")))

PRF files also have an icon set in Explorer, and you can double click them to import them:

I found Microsoft's implementation of the PRF format a bit strange, which seems to relate to how its decision is combined with the main Content Advisor settings. AcceptByURL and RejectByURL work well, and override ordinary decisions, ignoring any labels. For example, they allow unrated pages to be viewed when this isn't normally the case, or prohibit viewing of pages which would usually be allowed by virtue of their labelling. However, I was unable to get label-based policies like AcceptIf or RejectIf to work, even though these are supposedly supported. I also was unable to get a ratings bureau, which is supposed to be specified via bureauURL in a PRF file, to show up in the UI. The otherwise clauses appear to be implemented in a non-standard way where it applies the standard Content Advisor handling logic set in the UI, regardless of whether RejectIf "otherwise" or AcceptIf "otherwise" is used.

Here's an example of accessing the rsaci-min test page, which should ordinarily be allowed but which is blocked by the rules file:

Miscellanea

API. Microsoft's PICS implementation is actually part of the operating system, implemented in msrating.dll. The API is even documented so that other applications can take advantage. Microsoft also has a technical specification describing its PICS implementation.

Further reading. The PICS specification and W3C working group pages are still available.

Conclusions. Internet Explorer's “Content Advisor” and the PICS standard that turns out to underlie it is a fascinating view into a completely obsolete technical ecosystem. There's something vaguely amazing about the amount of effort that was put into developing the several different standards comprising PICS, let alone adding support for not just content ratings but all of the other PICS functionality, such as rules files and ratings bureaus, to IE. Were any ratings bureaus actually set up? Apparently, yes. How many people actually successfully used PICS? If you have your own story about this microcosm, do let me know. Now, it exists only as a strange historical curiosity; I myself only know about it because of the prominence which was given to it in IE's Internet Options dialog. —And having written this article, I now return PICS to the crypt from which I unearthed it.
